Specifications

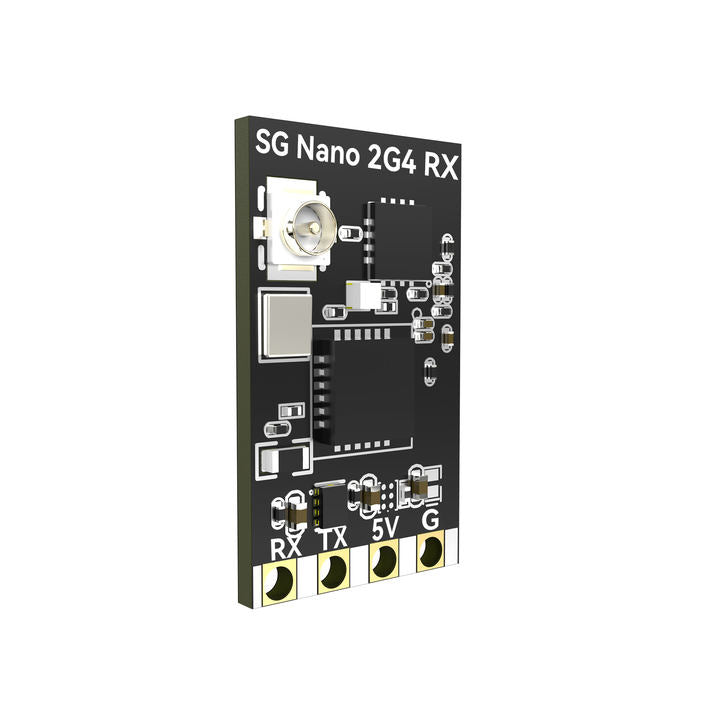

| Model | SkyGuy Nano 2.4GHz RX |
|---|---|
| Name | ExpressLRS Receiver |
| Frequency | 2.4GHz |

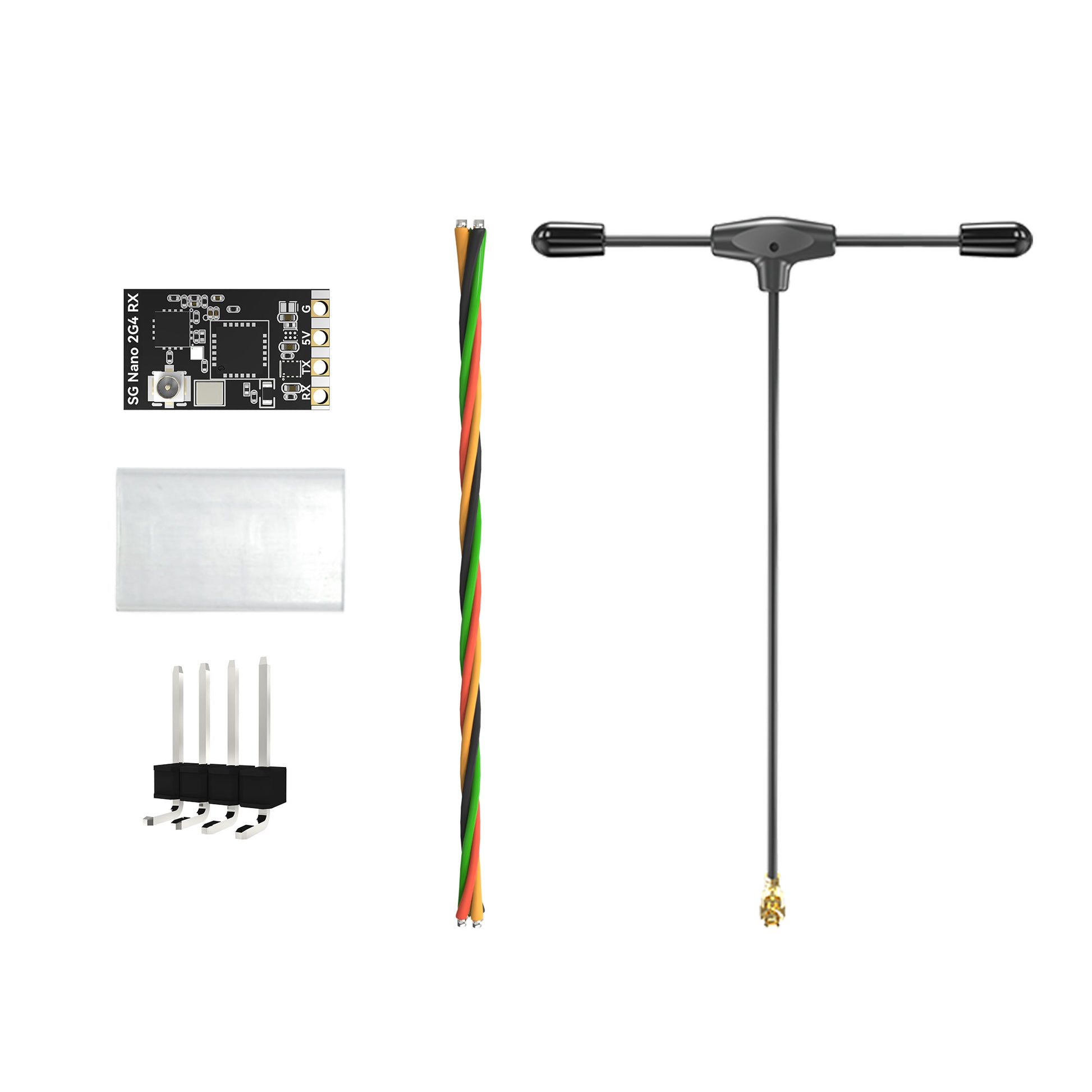

| Antenna | T-antenna (52*79mm, 0.9g) |

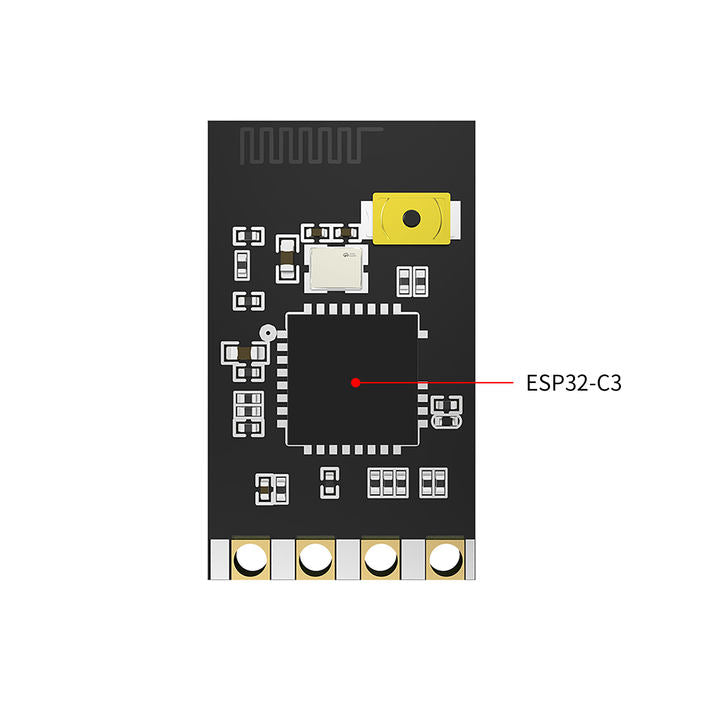

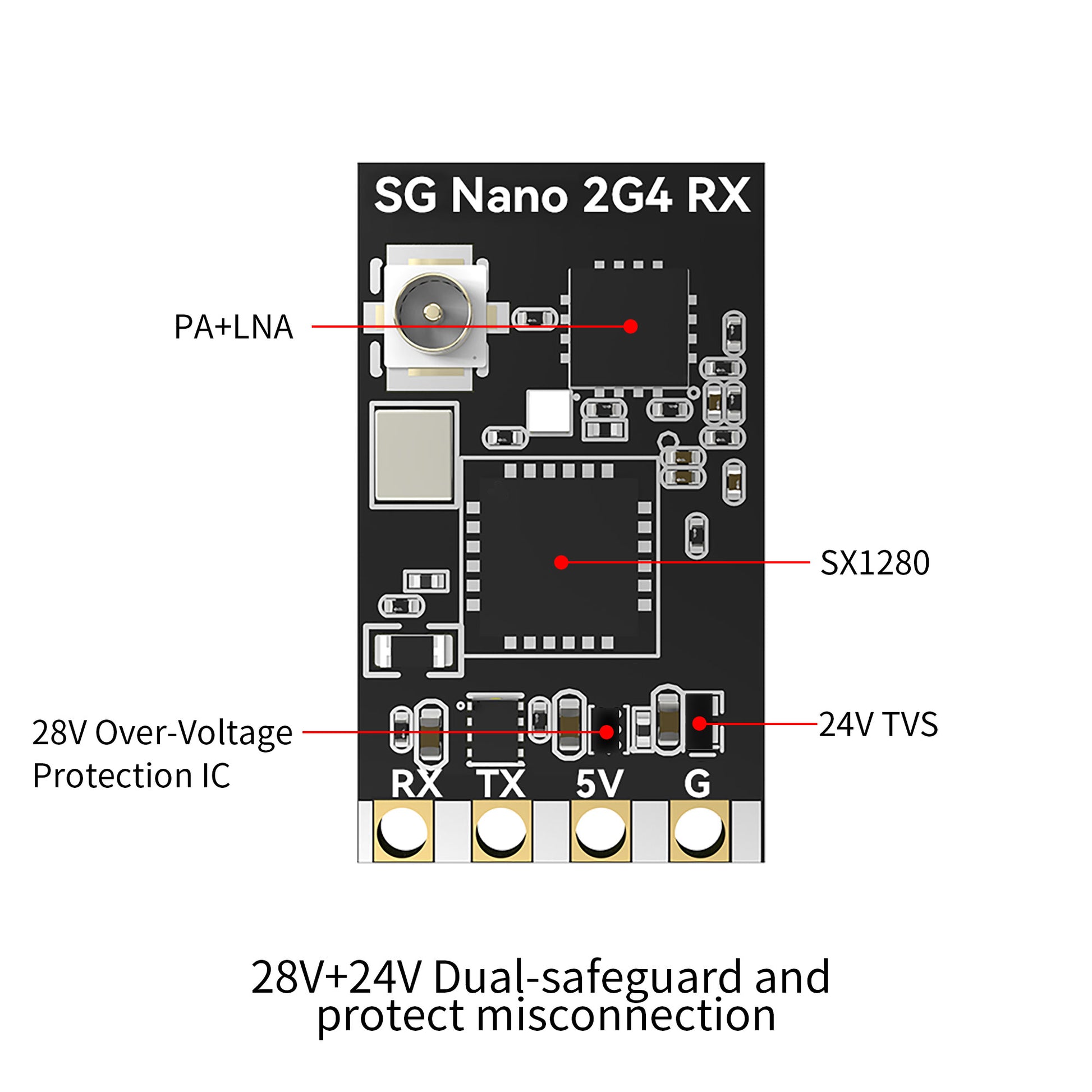

| Chips | SX1280 + ESP32-C3 |
| PA Type | PA + LNA |
| Power | 100mW |
| Input voltage | 5V |
| Antenna connector | IPEX1 |
| Weight | 0.7 gram (without antenna) |
| Dimensions | 10mm * 18mm |
| Default Firmware | SkyGuy Nano 2.4GHz RX 3.6.0 |
Light indicator
| Double-blink yellow | binding |
|---|---|
| Slow-blink yellow | powering up but not linked; no data received from the transmitter. |
| Solid RGB | receiver connected and receiving signal. |
| Green breathing light | Wi-Fi is on, and updating via Wi-Fi is availble. |
P.S.
After powering on, wait 60 seconds, or press and hold the button for 5 seconds to turn on Wi-Fi.
Quick power on and off 3 times, or press and hold the button for 2 seconds to enter binding mode.
